Description
*DIRECTLY FROM THE IMPORTER. *
TO VIEW ALL MY LISTINGS PLEASE VISIT MY STORE BY CLICKING THE LINK*
https://www.trademe.co.nz/stores/boatrollersandtrailerpartsltd
**THIS BRACKET CAN BE MOUNTED ON A BOW SHAPE OR ‘V’ SHAPE OR STRAIGHT BOX TRAILER. IT IS ONE PIECE 6MM THICK
PLEASE LET ME KNOW IF THE SHAPE OF YOUR TRAILER IS A BOW OR 'V' SHAPE.
** THIS AUCTION IS FOR ANYONE SET **

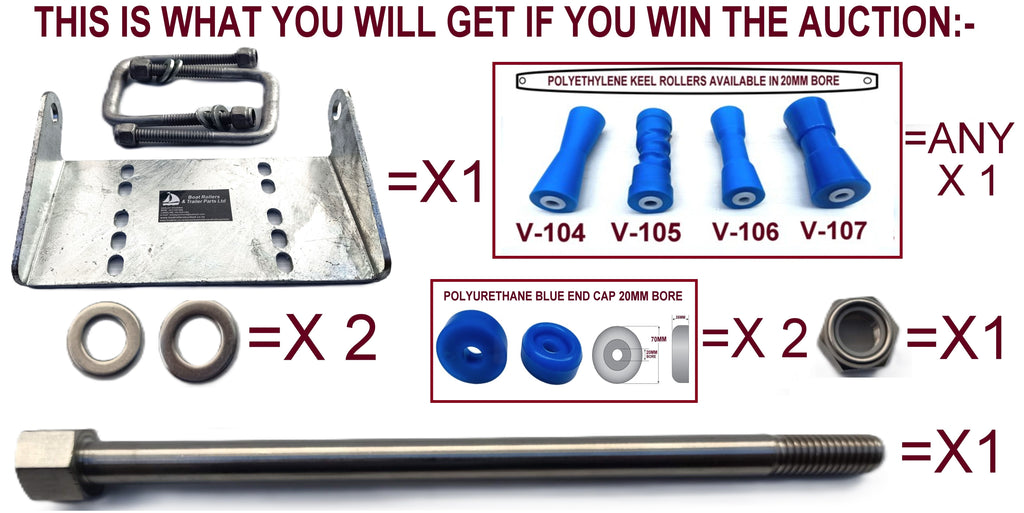

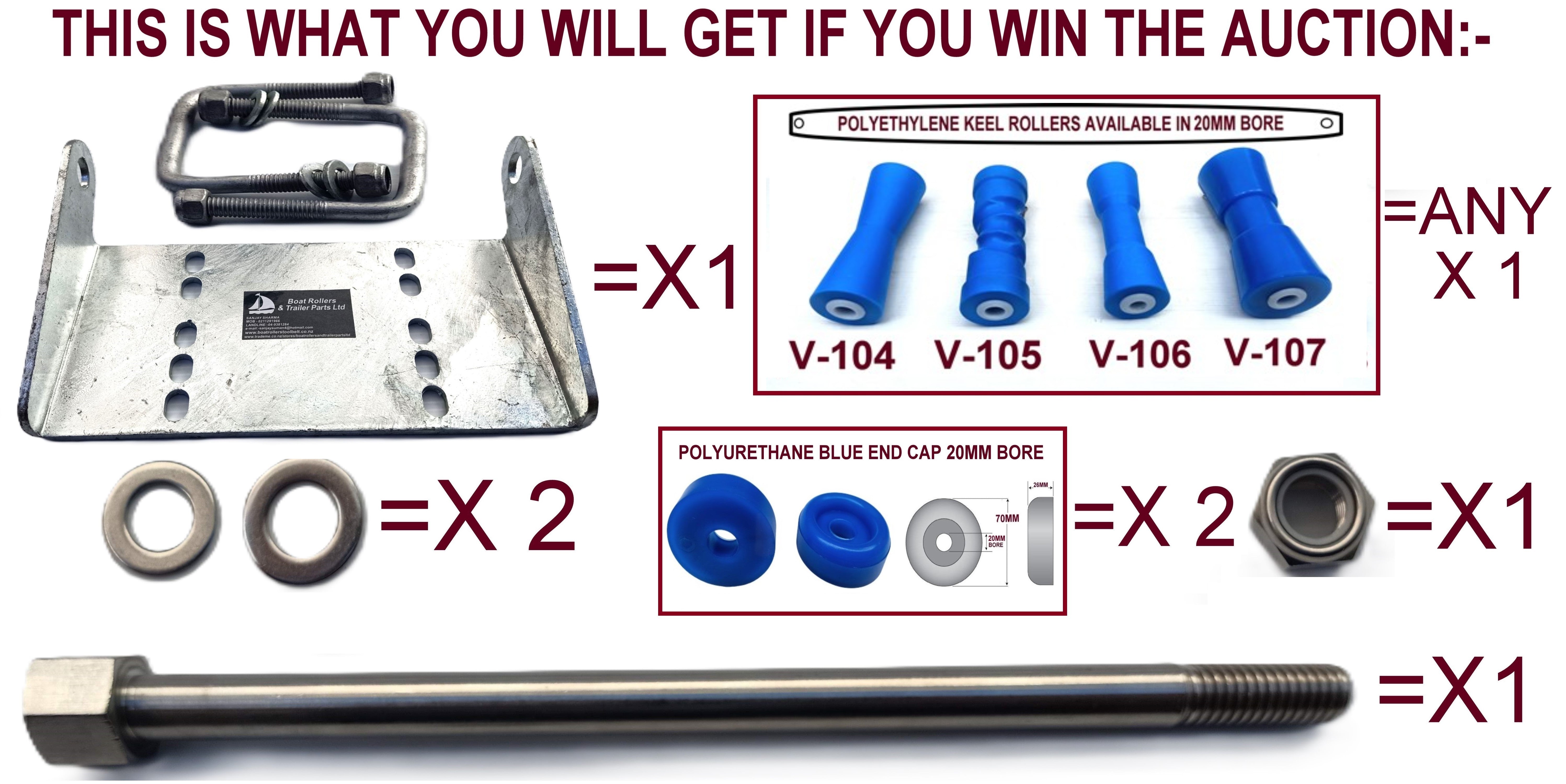

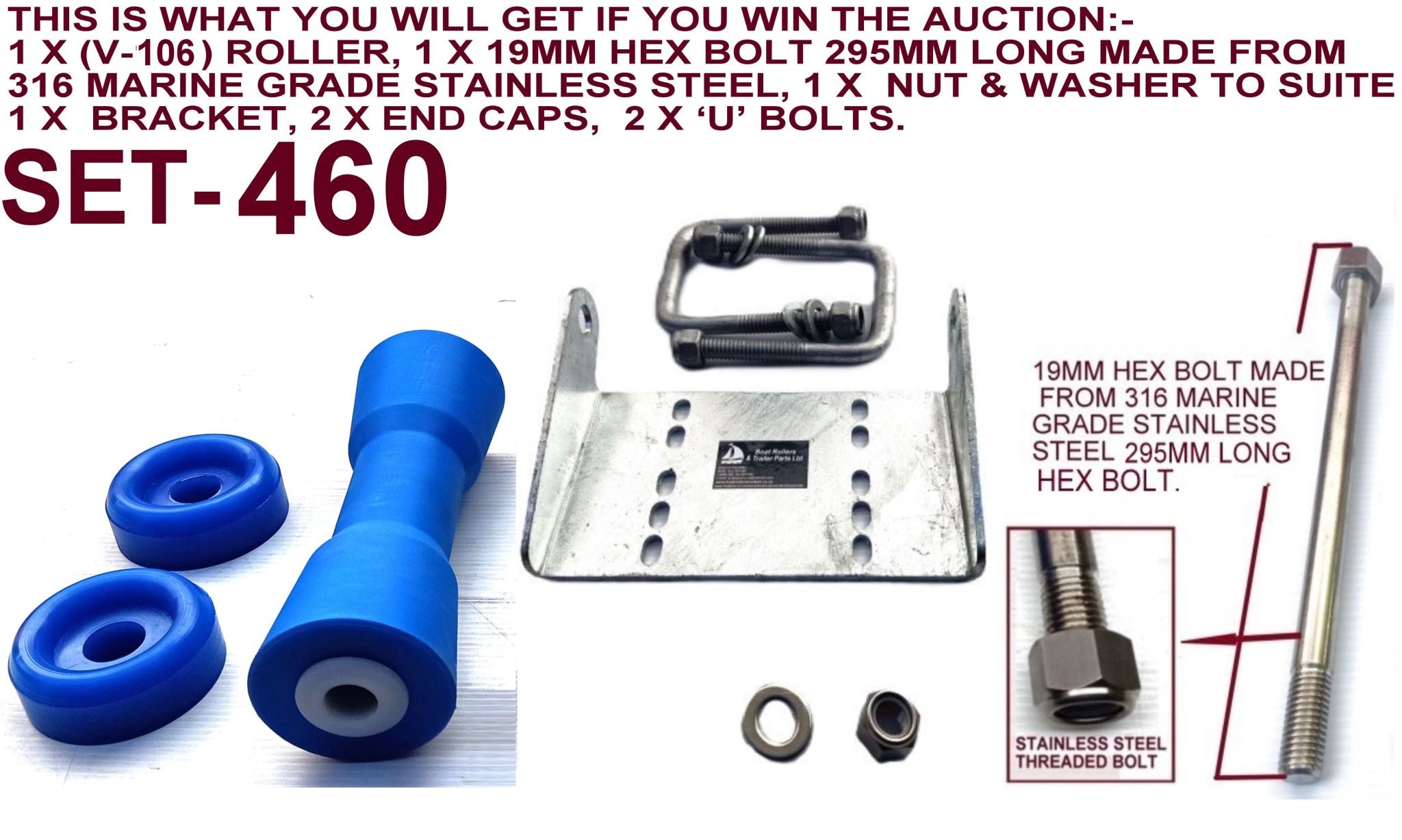

1 X SET=
1 X SUPER HEAVY DUTY SINGLE MOULDED BRACKET WITH
ANYONE ROLLER OF YOUR CHOICE
1 X295MM 316MARINE GRADE 19MM HEX BOLT WITH NUT.
2 XEND CAPS TO SUITE.
2 X M12 ‘U’ BOLTS WITH WASHERS AND NUTS.
TO WORK OUT THE CORRECT 'U' BOLT SIZE I NEED 'A' & 'B' OF YOUR TRAILER PL. SEE THE AUCTION PHOTO.
YOU CAN SWAP THE 'U' BOLTS WITH A BACKPLATE AND M12MM BOLTS IF THE SHAPE OF YOUR TRAILER IS BOW-LIKE).
THESE ROLLERS ARE IDEAL FOR USE WITH ALUMINIUM /ALLOY OR WOOD HULL BOATS.
THESE ROLLERS ARE BUILT TO STAND THE TOUGHEST OF CONDITIONS AND STILL MAINTAIN THEIR RELIABILITY.
THESE BRACKETS HAVE 6- HOLES AND CAN BE MOUNTED ON ANY OF THE FOLLOWING FRAME OR BOX OF YOUR TRAILER
THE HEIGHT CAN BE ADJUSTED BY 25MM BY JUMPING A HOLE
- 50MM X 50MM CAN INCREASE 25MM
50MM X 75MM CAN INCREASE 25MM - 75MM X 75MM CAN INCREASE 25MM
- 50MM X 100MM IS ON A FIXED HEIGHT
- 75MM X 100MM IS ON A FIXED HEIGHT
- 100MM X 100MM IS ON A FIXED HEIGHT
THESE ROLLERS WILL NOT SPLIT OR CRACK, UNLIKE RUBBER ROLLERS.

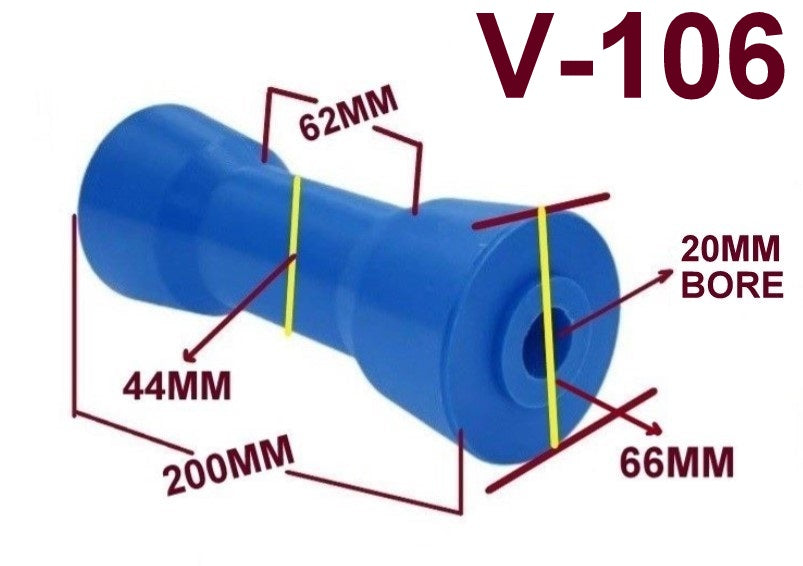

*** SPECIFICATION ***
V-104
LENGTH=200MM
FLANGE=67MM(FLANGE DIA)
BORE= 20MM
V-105
LENGTH=200MM
FLANGE=68MM(FLANGE DIA)
BORE= 20MM
V-107
LENGTH=204MM
FLANGE=83MM(FLANGE DIA)
BORE= 20MM
PLEASE LET ME KNOW:-

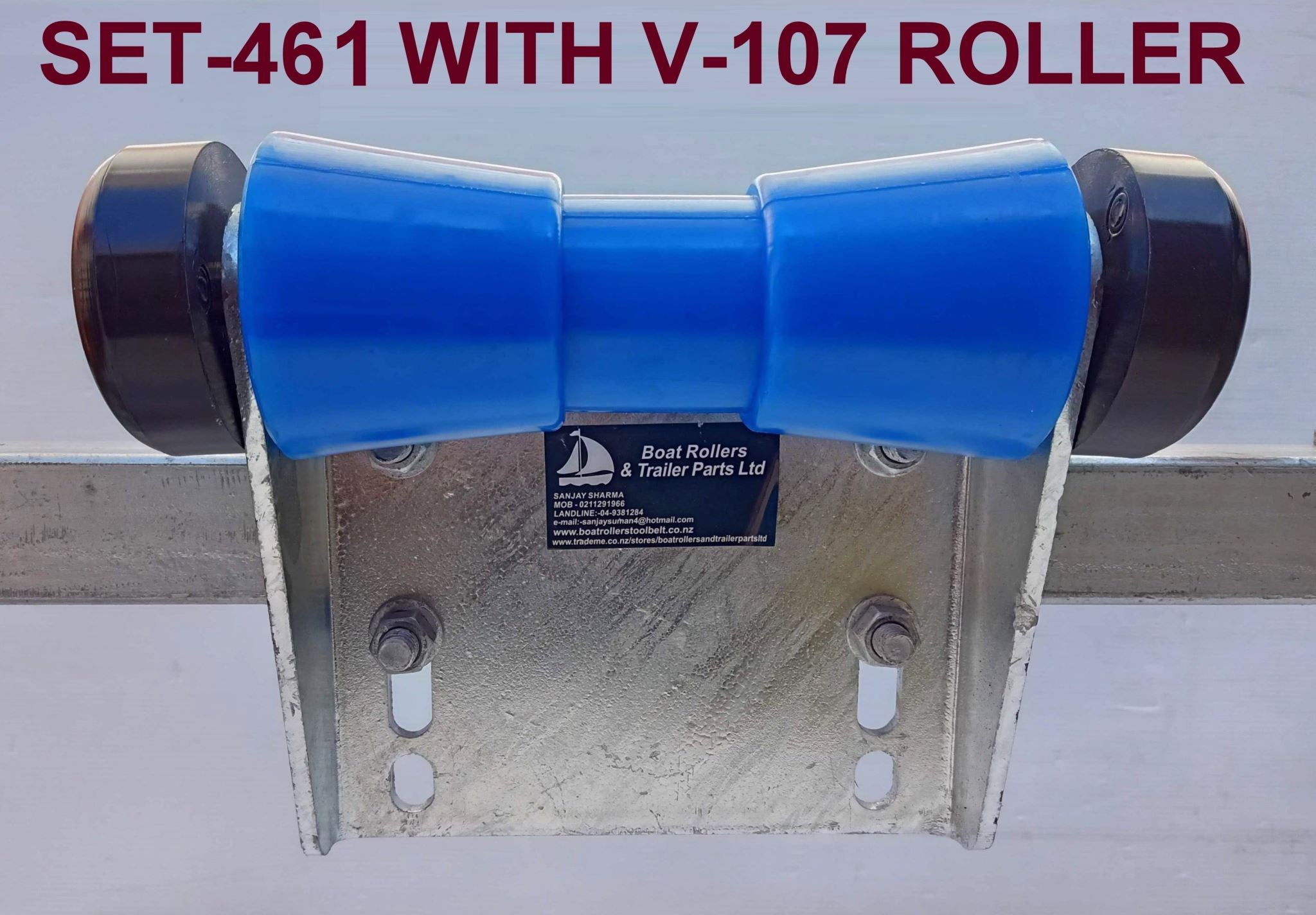

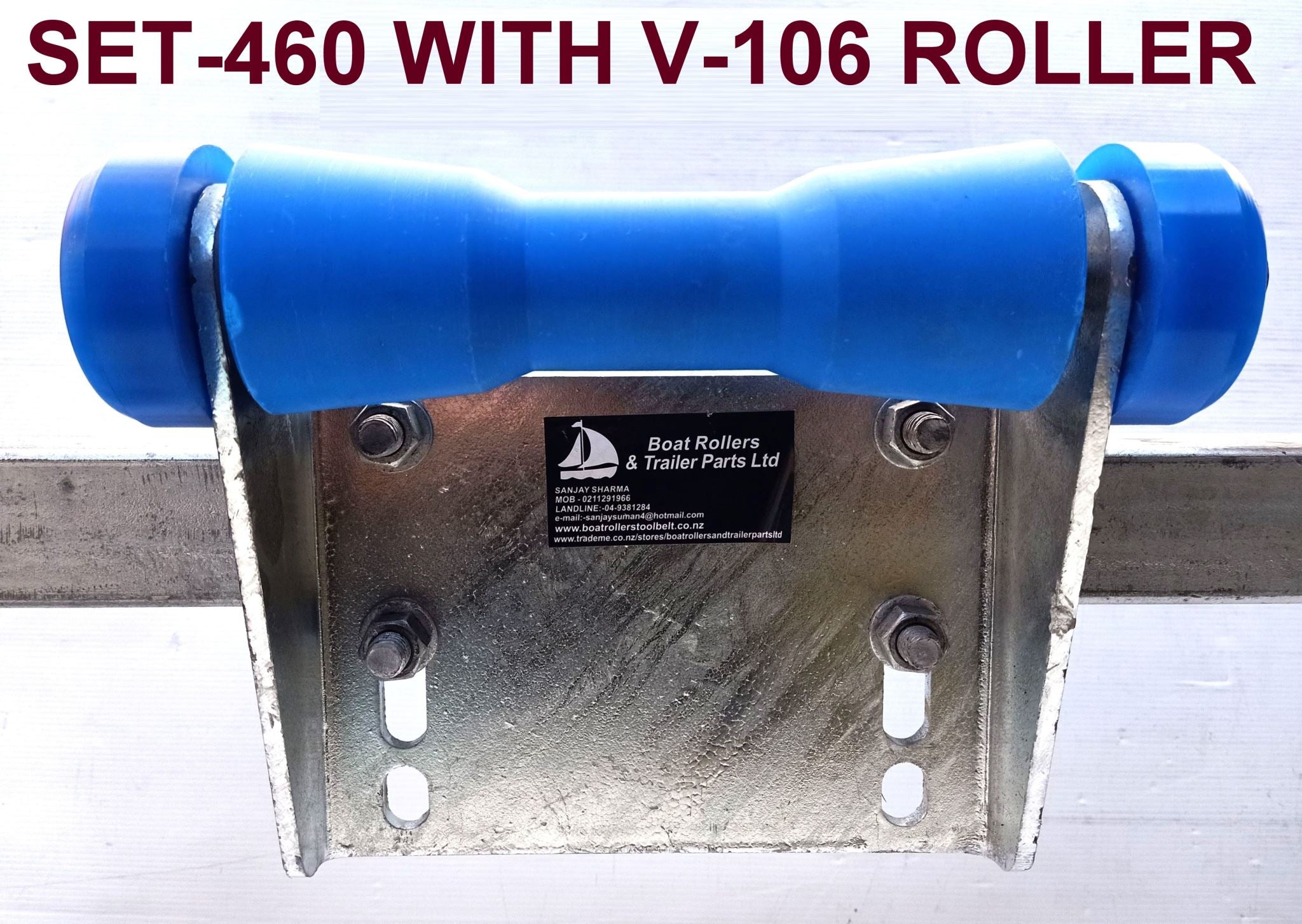

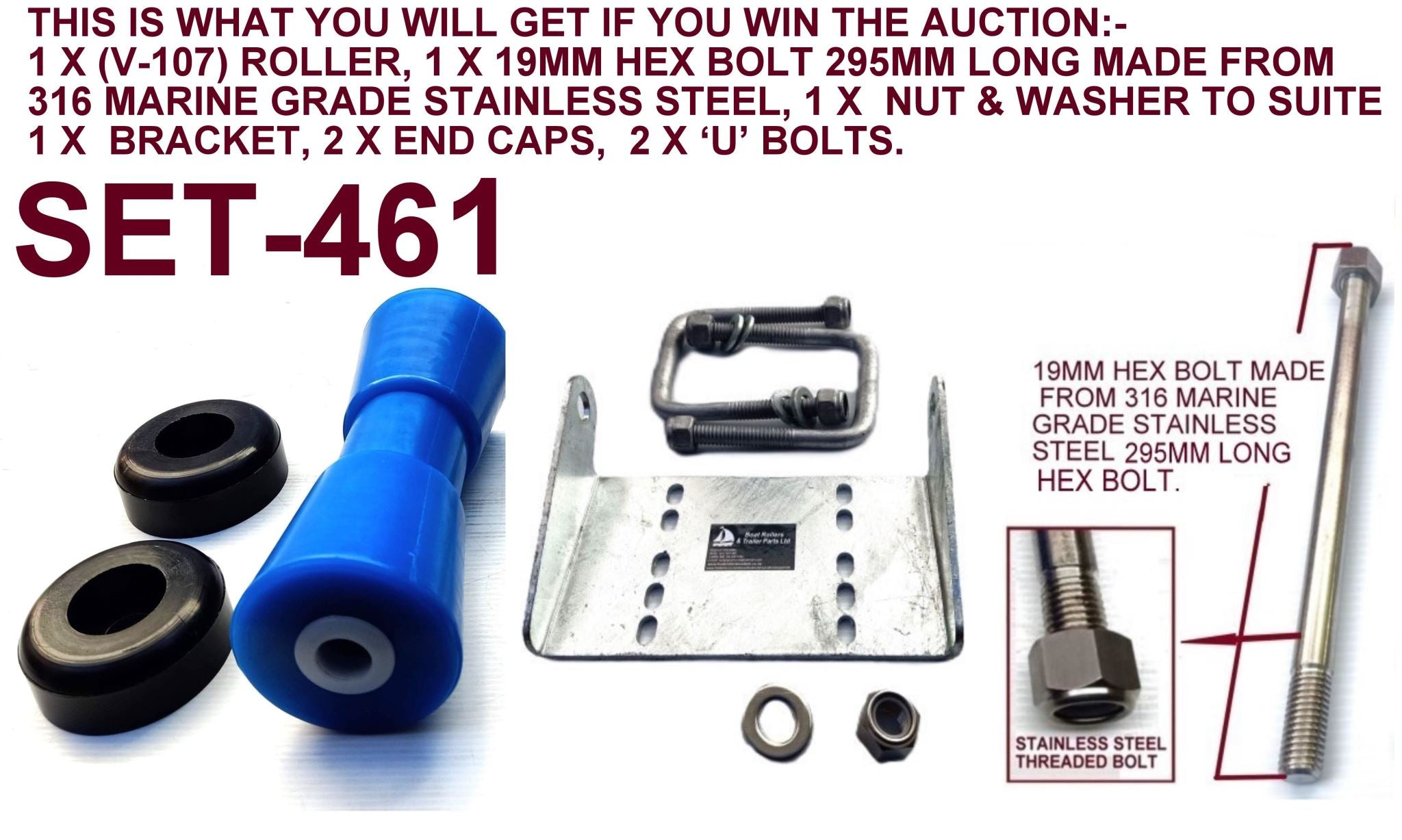

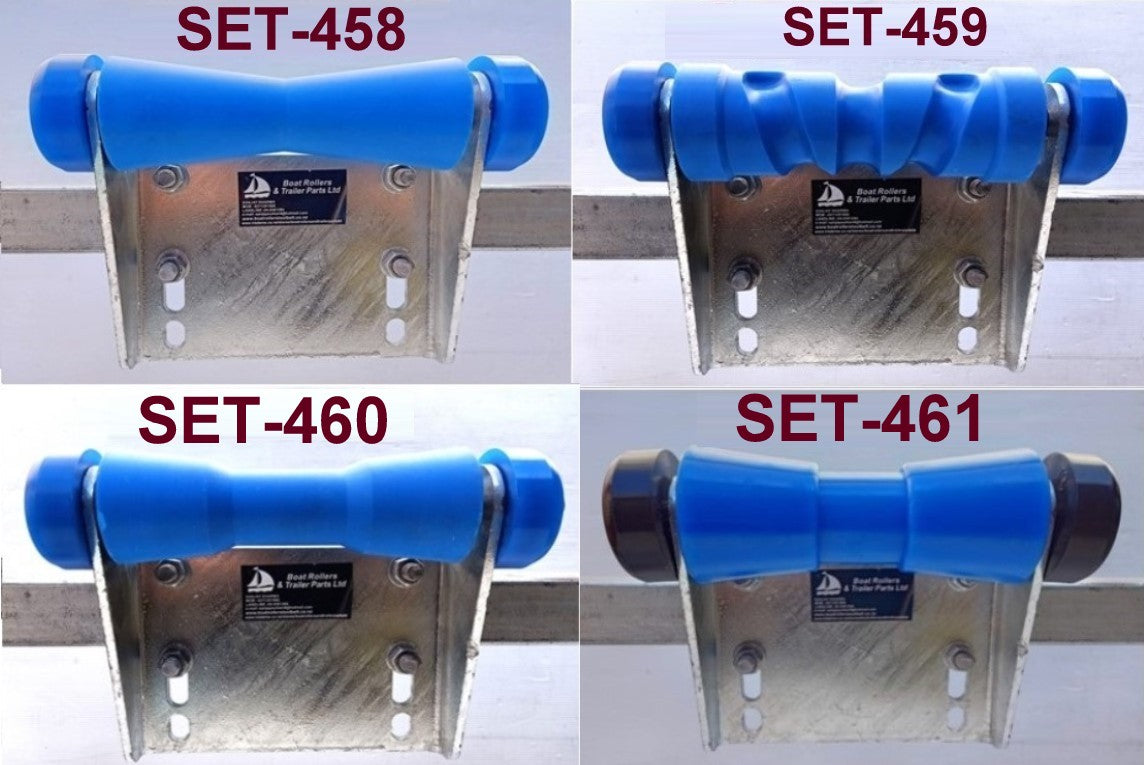

1) WHAT ROLLER U ARE AFTER THAT IS V-104, OR V-105, OR V-107 OR WHAT SET YOU ARE AFTER THAT IS SET-458, OR SET-459, OR SET-460.
2) WHAT IS THE BOX/FRAMEWORK SIZE OF YOUR TRAILER THAT IS ‘A’ & ‘B’ PLEASE SEE THE AUCTION PICTURE
100% New Zealand-owned Company-Boat Rollers And Trailers Parts Limited. All Auction produce is stocked in New Zealand(Wellington)
POSTAL CHARGES TO GREAT BARRIER, CHATHAM ISLAND, STEWART ISLAND & WAIHEKE ISLAND WILL INCUR ADDITIONAL CHARGES PLEASE INQUIRE BEFORE YOU PURCHASE.
** ALL THE BEST **
