Description
*DIRECTLY FROM THE IMPORTER. *
TO VIEW ALL MY LISTINGS PLEASE VISIT MY STORE BY CLICKING THE LINK*
https://www.trademe.co.nz/stores/boatrollersandtrailerpartsltd
**THIS BRACKET CAN BE MOUNTED ON A BOW SHAPE OR ‘V’ SHAPE OR STRAIGHT BOX TRAILER. IT IS ONE PIECE 6MM THICK
PLEASE LET ME KNOW IF THE SHAPE OF YOUR TRAILER IS A BOW OR 'V' SHAPE.
** THIS AUCTION IS FOR ANYONE SET **

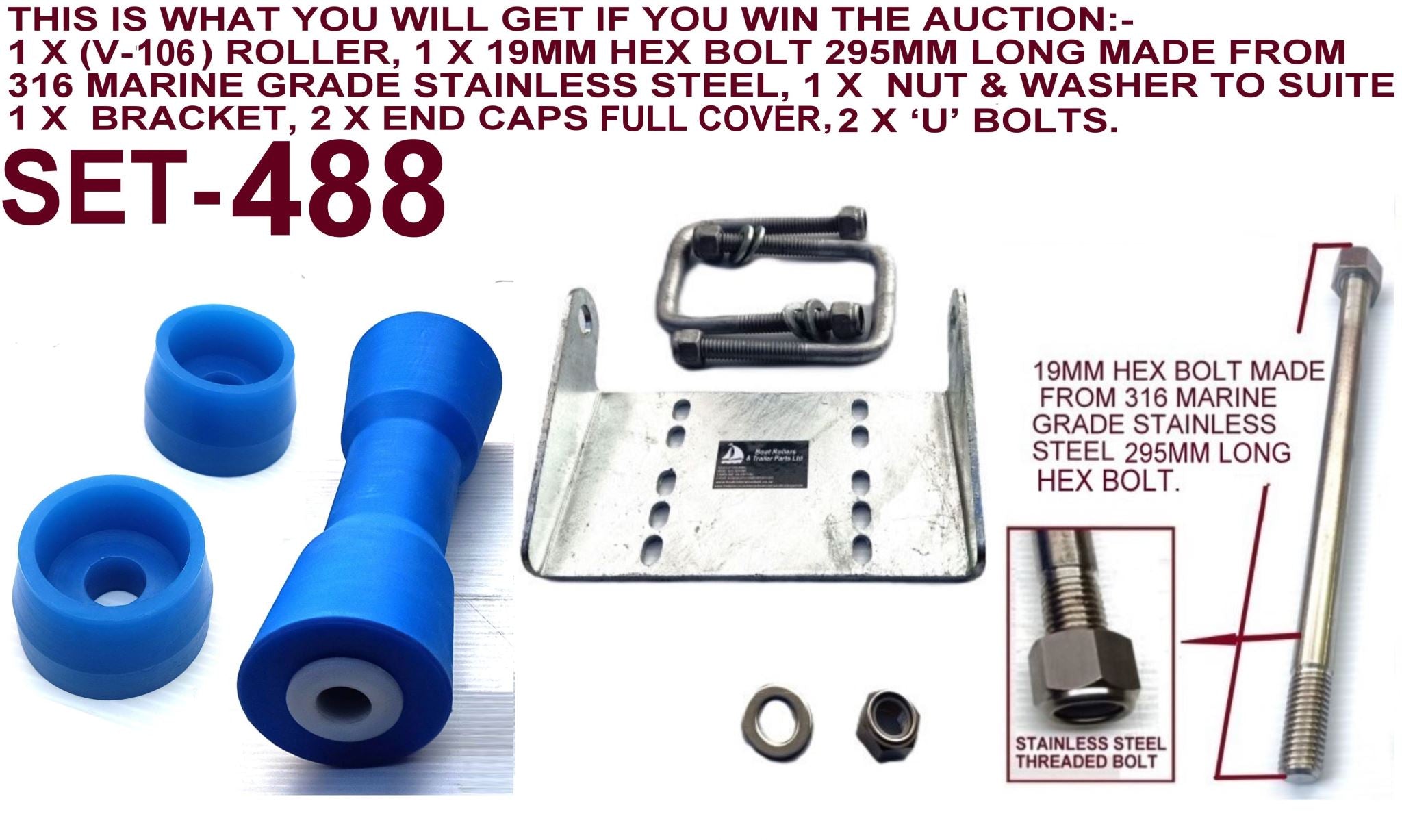

1 X SET=
1 X SUPER HEAVY DUTY SINGLE MOULDED BRACKET WITH
ANYONE ROLLER OF YOUR CHOICE
1 X295MM 316MARINE GRADE 19MM HEX BOLT WITH NUT.

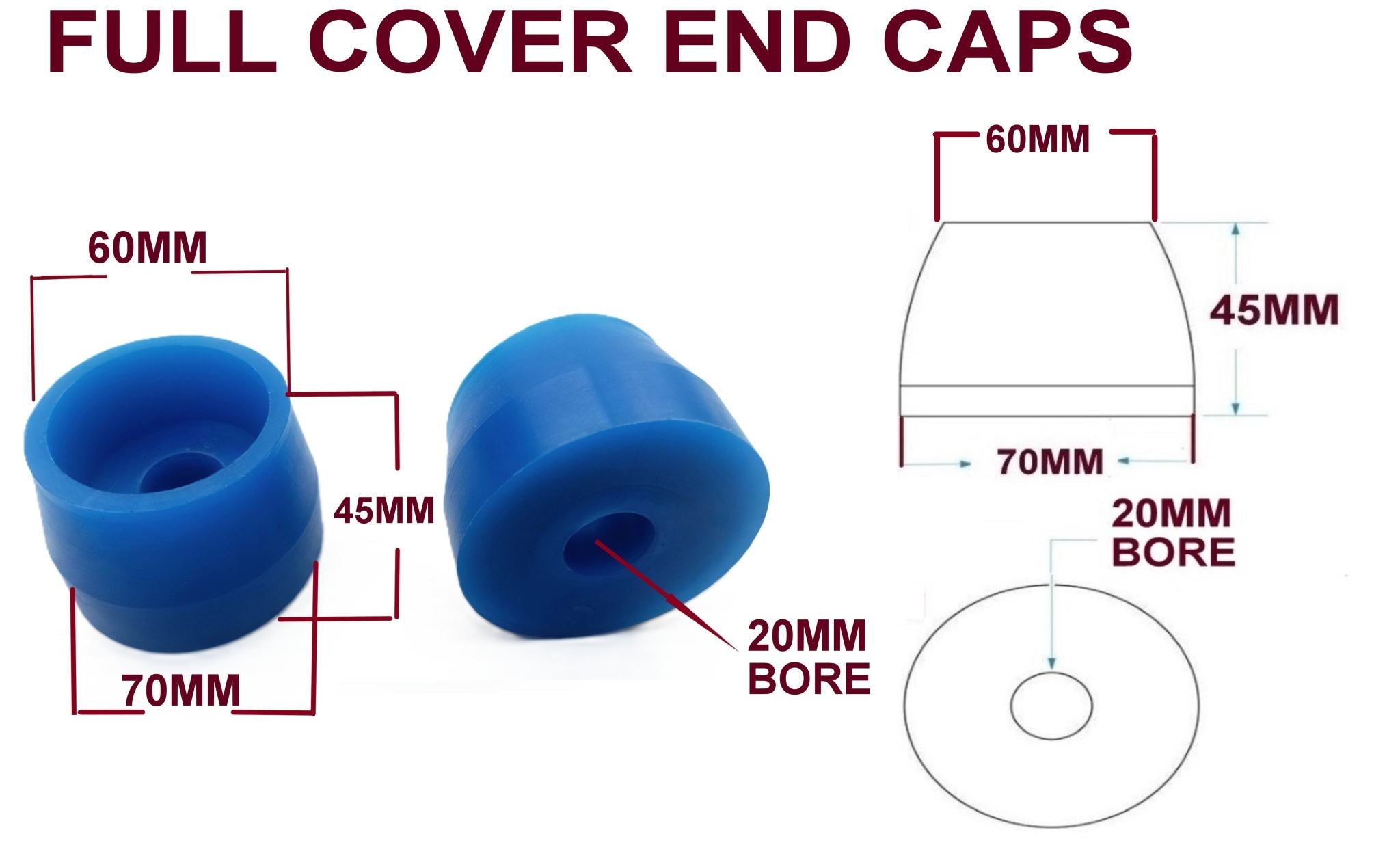

2 XEND CAPS TO SUIT.
2 X M12 ‘U’ BOLTS WITH WASHERS AND NUTS.
TO WORK OUT THE CORRECT 'U' BOLT SIZE I NEED 'A' & 'B' OF YOUR TRAILER PL. SEE THE AUCTION PHOTO.
YOU CAN SWAP THE 'U' BOLTS WITH A BACKPLATE AND M12MM BOLTS IF THE SHAPE OF YOUR TRAILER IS BOW-LIKE).
THESE ROLLERS ARE IDEAL FOR USE WITH ALUMINIUM /ALLOY OR WOOD HULL BOATS.
THESE ROLLERS ARE BUILT TO STAND THE TOUGHEST OF CONDITIONS AND STILL MAINTAIN THEIR RELIABILITY.
**THIS BRACKET CAN BE MOUNTED ON A BOW SHAPE OR ‘V’ SHAPE OR STRAIGHT BOX TRAILER. IT IS ONE PIECE 6MM THICK.
THESE BRACKETS HAVE 6- HOLES AND CAN BE MOUNTED ON ANY OF THE FOLLOWING FRAME OR BOX OF YOUR TRAILER
THE HEIGHT CAN BE ADJUSTED BY 25MM BY JUMPING A HOLE
50MM X 50MM CAN INCREASE 25MM
50MM X 75MM CAN INCREASE 25MM
75MM X 75MM CAN INCREASE 25MM
50MM X 100MM IS ON A FIXED HEIGHT
75MM X 100MM IS ON A FIXED HEIGHT
100MM X 100MM IS ON A FIXED HEIGHT
THESE ROLLERS WILL NOT SPLIT OR CRACK, UNLIKE RUBBER ROLLERS.
* SPECIFICATION *
V-104
LENGTH=200MM
FLANGE=67MM(FLANGE DIA)
BORE= 20MM
V-105
LENGTH=200MM
FLANGE=68MM(FLANGE DIA)
BORE= 20MM
V-106
LENGTH=200MM
FLANGE=66MM(FLANGE DIA)
BORE= 20MM
PLEASE LET ME KNOW:-

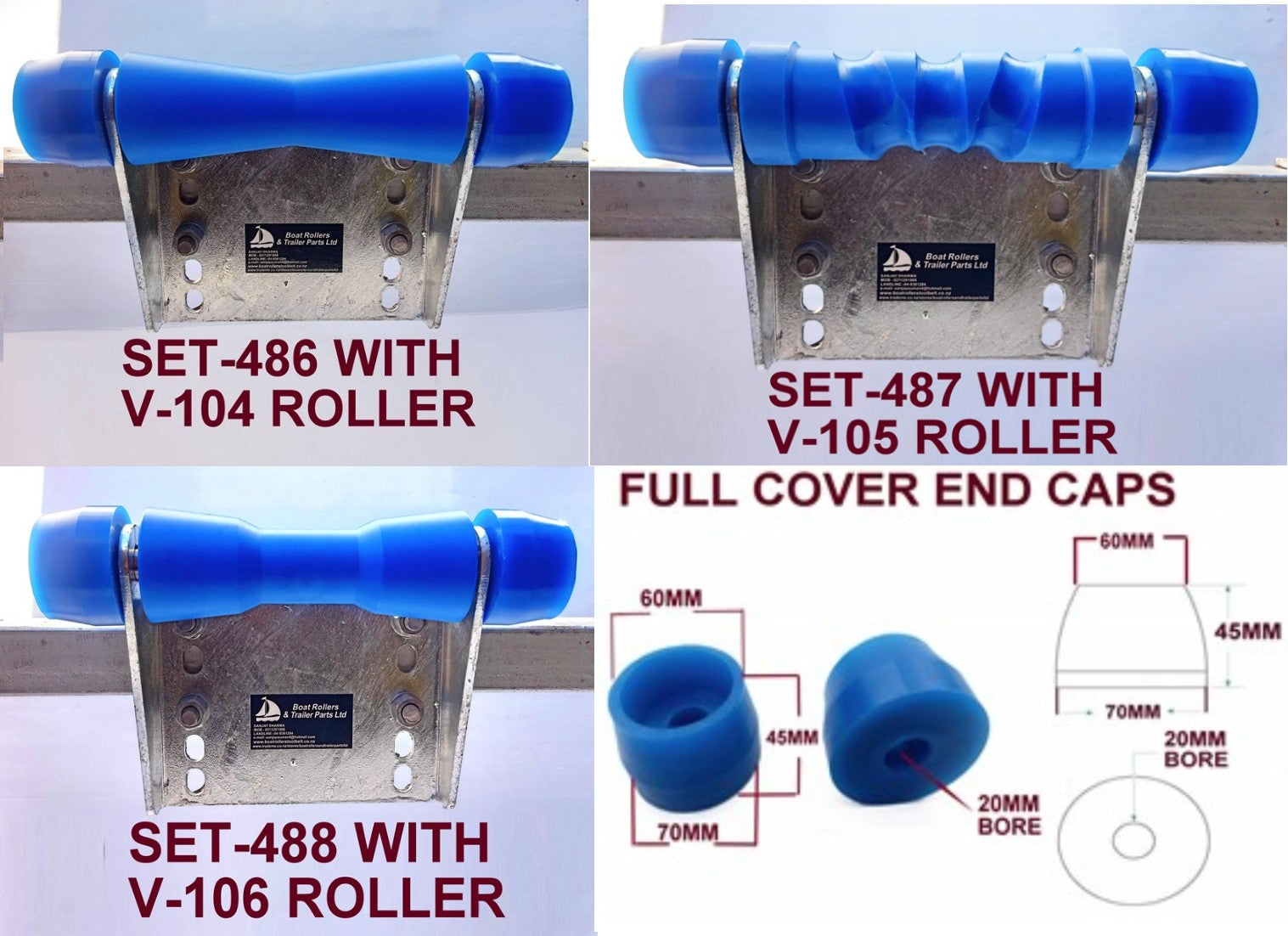

1) WHAT SET U ARE AFTER THAT IS SET-486, OR SET-487, OR SET-488.
2) WHAT IS THE BOX/FRAMEWORK SIZE OF YOUR TRAILER THAT IS ‘A’ & ‘B’ SO THAT I CAN GET THE CORRECT 'U' BOLT SIZE. PLEASE SEE THE AUCTION PICTURE FOR DETAILS.
100% New Zealand-owned Company-Boat Rollers And Trailers Parts Limited. All Auction produce is stocked in New Zealand(Wellington)
POSTAL CHARGES TO GREAT BARRIER, CHATHAM ISLAND, STEWART ISLAND & WAIHEKE ISLAND WILL INCUR ADDITIONAL CHARGES. PLEASE INQUIRE BEFORE YOU PURCHASE.
** ALL THE BEST **
